UC-A100

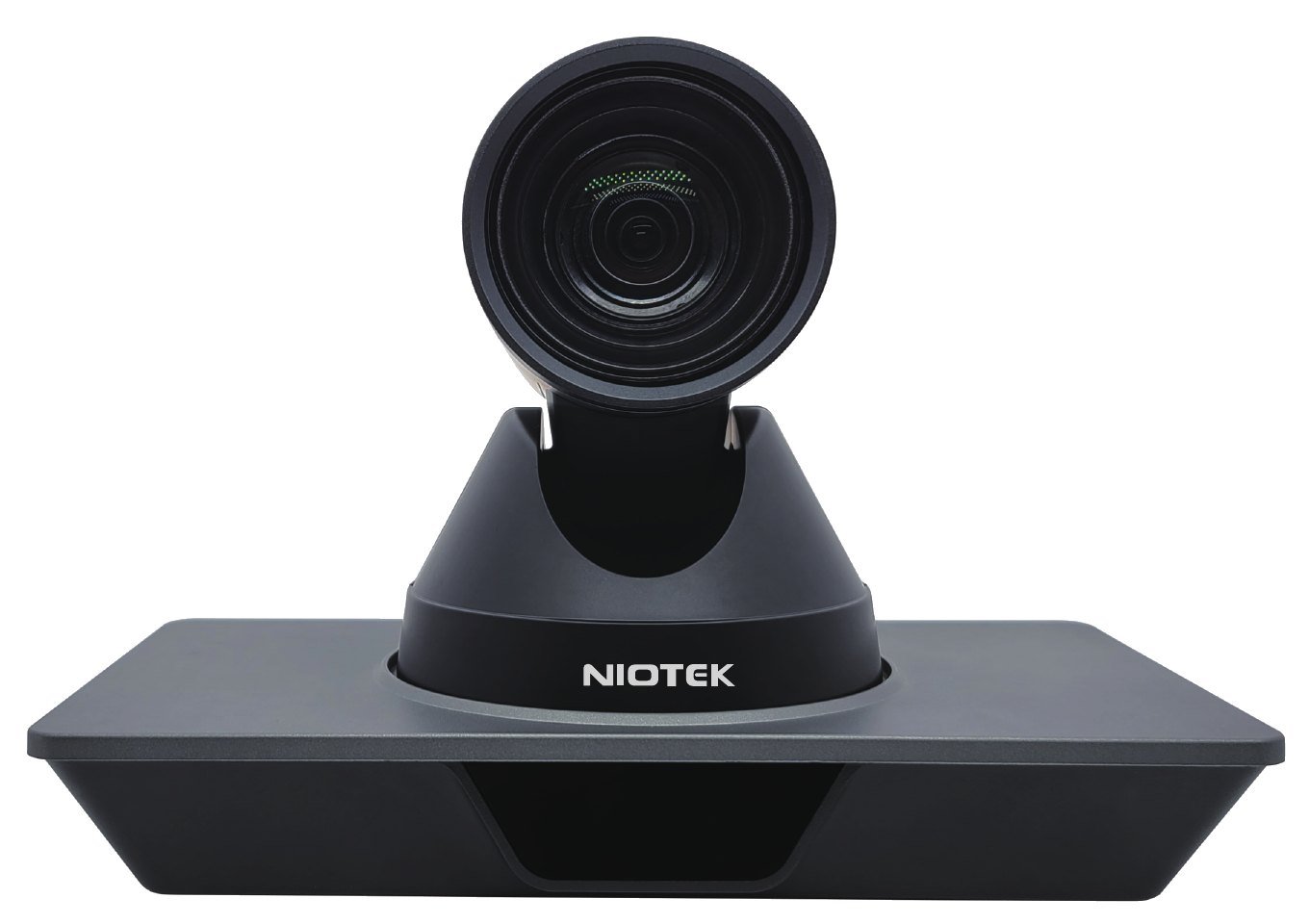

UC-A100 4K PTZ Camera
4K PTZ camera with Sony 1/2.5" sensor, 12x optical zoom and AI tracking.
- Sony 1/2.5" UHD CMOS sensor for 4K video
- 12x optical zoom with extended 16x digital zoom
- AI humanoid tracking
- Simultaneous UHD output via HDMI, USB and LAN, plus 3G-SDI
- PoE — video, network and power over one Ethernet cable
- Ultra-quiet, smooth pan-tilt movement
- RS232 / RS485 / IP / USB / IR remote control
- Works with Zoom, Microsoft Teams, Google Meet, Webex and more
Overview
Designed for executive meetings, professional broadcasting and educational recordings, the Niotek UC-A100 PTZ camera combines a Sony UHD sensor, 12x optical zoom and AI humanoid tracking. Low-light performance, PoE and flexible control options make it easy to deploy in any room.
Specifications
Camera
| Video format | 4K@30/25/29.97fps; 1080P@60/50/30/25/59.94/29.97fps; 1080I@60/50/59.94fps; 720P@60/59.94/50fps |
|---|---|
| Sensor | 1/2.5 inch CMOS, 8.51 MP effective |
| Optical zoom | 12x (f = 4.4 – 52.8 mm, F1.8 – F2.6) |
| Digital zoom | 16x |
| Minimum illumination | 0.5 Lux @ F1.8, AGC ON |
| White balance | Auto, Indoor, Outdoor, One Push, Manual |
| Backlight compensation | Supported |
| Noise reduction | 2D & 3D digital noise reduction |
| Horizontal / vertical / diagonal view | 71° / 42.7° / 82.8° |
| Rotation range | Horizontal ±170°, Vertical ±130° |
| Pan / tilt speed | 1.6° – 76°/s / 0.5° – 15°/s |
| Presets | 255 |
Network
| Video compression | H.264 / H.265 / MJPEG |
|---|---|
| Video stream | First stream, second stream |
| Primary stream resolution | 3840×2160, 1920×1080, 1280×720, 1024×576 |
| Sub stream resolution | 720×480 to 320×240 |
| Audio compression | AAC / G711A |
| Frame rate | 4K up to 30 fps; 1080P up to 60 fps |
| Protocols | TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast |
USB
| Operating system | Windows 7/8/10/11, macOS, Linux, Android |
|---|---|
| Video format | H.264 up to 2160p30, MJPEG up to 2160p30 |
| USB audio | Supported |
| UVC | 1.1 – 1.5, UVC PTZ supported |
Input / Output
| Network | 1 × RJ45 10/100/1000M |
|---|---|
| HDMI | 1 × HDMI 1.4 |
| 3G-SDI | 1 × BNC |
| Audio | 3.5 mm line in |
| USB | 1 × USB 3.0 (Type-B): up to 4K30 compressed, 1080P uncompressed |
| Control | RS232 IN, RS232 OUT, RS485 (VISCA / Pelco-D / Pelco-P) |
| Power jack | JEITA DC IN 12V |
Control
| Options | IR remote, RS232/RS485 serial (VISCA, Pelco-D/P), VISCA over IP / ONVIF, UVC PTZ, web browser / HTTP CGI, NIOTEK Align |
|---|
Power
| Power input | DC 12V / USB DC 5V / PoE (802.3af) |
|---|---|
| Current | 12V 1.0A max / 5V 1.5A max |
| Power consumption | 12W max |
Physical & Environment
| Camera dimension (L × H × D) | 238 × 167 × 149 mm |
|---|---|
| Net weight | 1.35 kg |
| Package dimension | 285 × 235 × 230 mm |
| Gross weight | 3.10 kg |
| Operating temperature | -10°C – 40°C |
| Storage temperature | -40°C – 60°C |
Package Contents
| In the box | UC-A100 camera, lens cover, USB 3.0 cable (2 m), power adaptor, remote control, Quick Start Guide |
|---|
Specifications are subject to change without notice. Product images are for illustration.
