UC-X10

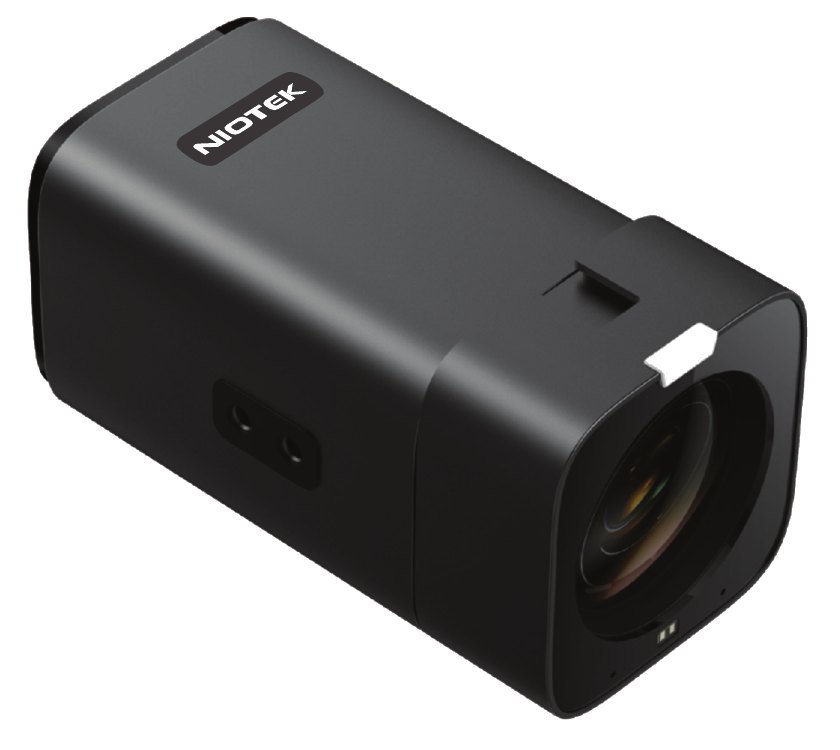

UC-X10 4K Professional Camera
4K60 box camera with 12x optical zoom, 3G-SDI and built-in microphone.
- 4K60 output from a 1/2.8" 8.4 MP UHD CMOS sensor
- 12x optical zoom with HD wide-angle lens (72.8° FoV)
- Laser-assisted TOF autofocus
- 3G-SDI output at 1080P60
- Built-in array microphone with 360° pickup up to 6 m
- HDMI, SDI, USB and network outputs with PoE
- Onboard buttons, dual IR receivers and full web control
Overview
Built for professional broadcasting, educational training and administrative meetings, the Niotek UC-X10 pairs a 4K image sensor with a long optical zoom lens. A built-in digital array microphone, onboard control buttons, infrared remote and a full-function web page make installation and setup quick.
Specifications
Optics
| Optical zoom | 12x |
|---|---|
| Horizontal FOV | 72.8° – 6.8° |
| Vertical FOV | 44.1° – 3.8° |
Camera
| Signal system | HDMI: 4KP60/50/30/25/59.94/29.97, 1080P60 etc.; 3G-SDI: 1080P60/50/30/25, 720P60 etc. |
|---|---|
| Sensor | 1/2.8 inch CMOS, 8.4 MP effective |
| Focus mode | Auto, One Push, Manual (laser-assisted TOF) |
| Minimum illumination | 0.5 Lux |
| Shutter | 1/30s – 1/10000s |
| White balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Backlight compensation / HDR | Supported |
| Noise reduction | 2D / 3D digital noise reduction |
| SNR | ≥55 dB |
| Anti-flicker / image flip / image freeze | Supported |
| PoE | Supported |
| Presets | 255 |
Device Operation
| Body buttons | 8 — zoom, focus, brightness, menu, image freeze, mode switching |
|---|---|
| Webpage | Full-function web page |
| Remote control | 360° infrared remote support |
Input / Output
| HD output | 1 × HDMI 2.0; 1 × 3G-SDI (BNC, SMPTE 424M) |
|---|---|
| Network | 1 × RJ45 10/100/1000M, PoE (802.3af) |
| Audio input | 1 × line in (3.5 mm), 2 × microphone input |
| Audio output | 1 × line out (3.5 mm) |
| USB | 1 × USB 3.0 Type-C |
| Control | 1 × RS485 (Phoenix, up to 1200 m; VISCA / Pelco-D / Pelco-P) |
| Power | DC005-2.0mm (DC IN 12V) |
Network
| Video compression | H.264 / H.265 / MJPEG |
|---|---|
| Video stream | First stream, second stream |
| First stream resolution | 3840×2160, 1920×1080, 1280×720 etc. |
| Second stream resolution | 1920×1080, 1280×720, 1024×576 etc. |
| Video bit rate | 32 kbps – 102400 kbps (VBR, CBR) |
| Frame rate | 50Hz: 1–50 fps; 60Hz: 1–60 fps |
| Audio | AAC, G711A, 48 kHz, 48–128 kbps |
| Protocols | NDI®|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s), ONVIF, DHCP, GB/T 28181, Multicast |
USB
| Operating systems | Windows 7 (UVC1.1 features), Windows 8 and above, macOS, Linux 2.4.6+, Android (with UVC drivers) |
|---|---|
| Video format | YUY2 up to 1080P30; H.264 AVC/SVC and MJPEG up to 2160P |
| USB audio | Supported |
| UVC | 1.1, UVC PTZ control supported |
General
| Input voltage | DC 12V / PoE (802.3af) |
|---|---|
| Input current | 1A max |
| Operating temperature | -10°C – 40°C |
| Storage temperature | -40°C – 60°C |
| Dimension | 145 (W) × 76 (D) × 78.5 (H) mm |
Specifications are subject to change without notice. Product images are for illustration.
